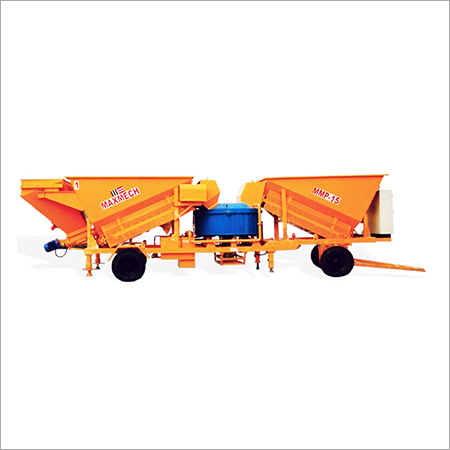

Mobile Concrete Batching Mixing Plant

Mobile Concrete Batching  Mixing Plant
Mobile Concrete Batching Mixing Plant
Product Code : MMP
Brand Name : MAXMECH
Product Description
We are enlisted as a trusted and reputed name in the domain of manufacturers, exporters and suppliers of best quality Mobile Concrete Batching Mixing Plant. Offered as per the variegated requirements of our valued customers, these plants are made in close compliance to the prevailing industrial standards. In order to ensure that our customers are offered with the best quality products, the quality controllers conduct various tests on the manufactured products. To augment that, logistic department at our end make sure to deliver these plants within the promised time frame. Some of the quality attributes of our manufactured Mobile Concrete Batching Mixing Plant are:
  • High production rates ranging from 15 to 36 M3/hr
  • High quality concrete production
  • Easy mobility
  • No foundation require

Technical Specifications
Application


This plant is generally used where more mobility is required like; Canal works, high volume bases/ foundations, public works, road bases, wind turbine foundations, multistoried buildings and malls etc.

Description

  • "MAXMECH" Mobile Concrete Batching/ Mixing Plant MMP models are the most efficient and versatile rolling plants available in different models ranging from 15 m3/hr. to 36 m3/hr. capacities
  • It works as a rolling concrete batch plant ready for production within few hours of arrival at site. "MAXMECH" MMP model plants consists of
  • A heavy duty tubular section chassis on which 3 or 4 aggregate silos are bolted. Below each aggregate silo a belt conveyor runs which charge the material into the turbo mixer
  • A turbo pan mixer is located at the center of the chassis and mounted on 3 load cells for accurate weighment
  • A cement feeding hopper is located on one rear end of the chassis below which a screw conveyor is fitted which charge cement into turbo mixer
  • A water/ additive combine tank with separate pumps is fitted between the chassis at one end which delivers water and additive into turbo mixer

Description

MMP 15

MMP 18

MMP 20

MMP 25

MMP 28

MMP 30

MMP 36

Mixer Diameter and Type

Turbo Pan

Turbo Pan

Turbo Pan

Turbo Pan

Turbo Pan

Turbo Pan

Turbo Pan

Batch Size

0.5m3

0.75m3

0.75m3

0.8m3

1.2m3

1.2m3

1.2m3

Mixer Volume

1m3

1.8m3

1.8m3

1.8m3

2.2m3

2.2m3

2.2m3

Cycle Time

120 sec

150 sec

135 sec

175 sec

2.5 min

2.4 min

2 min

Aggregate Silo

2.5m3

3.5m3

3.5m3

3.5m3

5m3

5.5m3

6m3

No. of Aggregate Silo

3 nos

3/4 nos

4 nos

4 nos

4 nos

4 nos

4 nos

Cement Hopper

1m3

1m3

1m3

1m3

1.5m3

1.5m3

1.5m3

Water Tank (inbuilt)

400 Ltrs

400 Ltrs

600 Ltrs

750 Ltrs

700 Ltrs

700 Ltrs

750 Ltrs

Additive Tank (Inbuilt)

100 Ltrs

100 Ltrs

125 Ltrs

125 Ltrs

125 Ltrs

125 Ltrs

150 Ltrs

Water level controller

Provided

Provided

Provided

Provided

Provided

Provided

Provided

Water flow meter

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Agg. Belt conveyor width

500mm

500mm

500mm

500mm

500mm

500mm

500mm

Mixer Box lubrication

Provided

Provided

Provided

Provided

Provided

Provided

Provided

Total electrical load

50.85 HP

53.35/58.35 HP

63.35 HP

73.35 HP

92.35 HP

92.35 HP

102.35 HP
