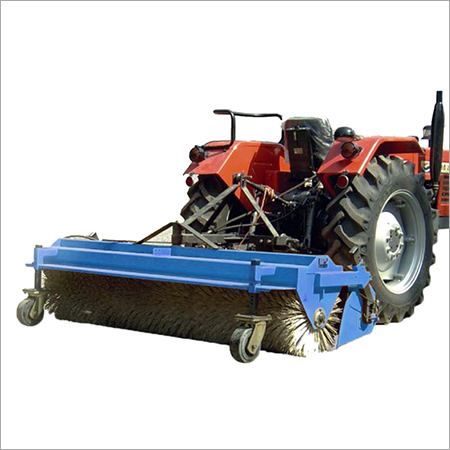

Hydraulic Sweeping Machine

Hydraulic Sweeping Machine
Hydraulic Sweeping Machine
Product Code : 14
Product Description

We are engaged in manufacturing, exporting and supplying the best quality Hydraulic Sweeping Machine. It is built following latest technology at our state-of-the-art manufacturing plant. This machine is offered with a cleaning brush that is driven by a powerful hydraulic motor and the dust is collected into a waste collecting container in running condition. The machine is powered by a tractor through quick release hydraulic hose attachment. Hydraulic Sweeping Machine manufactured by us is used for cleaning road, street, highway, petrol pump, parking plot.

Equipment Configuration:

  • Machine casing stable and rigid construction
  • Main Brush dia. 520 mm polypropylene (PPN-Natural)
  • Powerful hydraulic drive strong Geromotor, requiring single or double hydraulic system with return flow. (From Toeing Equipment i.e. Tractor).
  • Quick Release Hydraulic Connecter for Tractor
  • Lever Attachment for toeing (Three Point Linkage System)
  • Two High Pressure Hose Pipes with Waste Collection Container with Height Adjustment and Emptying Device

Salient Features

  • Quick mounting with tractor / fork lift; due to three point linkage system.
  • Easy to operate and maintain
  • Powered by either a tractor or a fork lift
  • Sweep and collect @ 6 k.m. / hr. or 13800 m2 / hr
  • Long life Polypropylene (PPN-pure) brush; not PVC or Nylon
  • Two High Pressure Hose Pipes with Waste Collection Container with Height Adjustment and Emptying Device
  • Technically cost effective and versatile in application
  • Maintenance free hydraulic drive
  • Machine can be lifted by tractor hydraulic for quick transportation

Technical Specification:

Model

MB 20

Hydraulic Drive

1 Geromotor

Max. Operating Pressure

180 bar

Min. Hydraulic Oil Requirement

20 lpm

Working width

2300 m.m.

Waste Collection Container Volume

240 lt.

Weight

200 k.g.

Main Brush

Dia. 520 m.m. (3 Piece) PPN Brush  (Polypropylene - Natura)

Brush Revolution

Min. 100 - Max. 150 r.p.m.

Supporting Wheels

Dia. 200 X 50 m.m. adjustable height with dust caps (Rubber Moulded)
